CS 444: Deep Learning for Computer Vision, Fall 2024, Assignment 3

Instructions

1. Assignment is due at 11:59:59 PM on Tuesday Nov 5 2024.

2. See policies on class website.

3. Submission instructions:

   1. On gradescope assignment called MP3-code, upload the following 4 files:

      • Your completed network.py and detection_utils.py. We will run tests to evaluate your pytorch code for compute_targets, compute_bbox_targets, apply_bbox_deltas, nms and functions in the Anchors class.
      • Predictions from your trained RetinaNet (results_test.json) from Question 6. See predict.py for code that generates the result file. We will benchmark your predictions and report back the average precision. Score will be based on the average precision of your predictions.
      • A single self-contained script called script_full.pythat includes all the code to train and test the model that produced the test set results that you uploaded.

      Please also note the following points:

      • Do not compress the files into .zip as this will not work.
      • Do not change the provided files names nor the names of the functions but rather change the code inside the provided functions and add new functions. Also, make sure that the inputs and outputs of the provided functions are not changed.
      • The autograder will give you feedback on how well your code did.
      • The autograder is configured with the python libraries: numpy absl-py tqdm torch pycocotools only.

   2. On gradescope assignment called MP3-report, upload:

      • Visualization for Question 1.2
      • Training / validation plots and a description of what all you tried to get the detector to work and supporting control experiments. See Question 6 for more specific details.

4. Lastly, be careful not to work of a public fork of this repo. Make a private clone to work on your assignment. You are responsible for preventing other students from copying your work.

Suggested Development Workflow

For questions 1 through 5, you can do your development on on a local machine without a GPU. For Q6, where you have to actually train the model, you will need to use the Campus Cluster setup. Follow the instructions here

Setup

1. Install pre-requisites in requirements.txt
2. Download the dataset: In this MP, we will be working with a subset of images from the MS-COCO dataset containing 10 different kinds of animals. The train, valid, and test splits contain 5000, 1250, and 1250 images, respectively. If you are on a Unix-based system (macOS or Linux), you can run the following commands to download the dataset. If you are using Windows, you should manually download the dataset from here and extract the compressed file to the current directory. You should see a coco folder containing the dataset.

   wget https://saurabhg.web.illinois.edu/teaching/cs444/fa2024/mp3/coco-animal.zip -O coco-animal.zip
   unzip coco-animal.zip

3. In the dataset.py, we provide the CocoDataset class that streamlines the process of loading and processing your data during training. You don't need to modify it now, but may find it modify it to add different types of augmentations when you try to get your model to perform better.
4. Additionally, this dataset has also been made available at /projects/illinois/class/cs444/saurabhg/fa2024/mp3/coco-animal on the Campus Cluster as a common resource, so there is no need to download and transfer the dataset. This will be handy when you will train your model.

Problems

We will be implementing a single-stage detector. There are many out there (SSD, YoLo, FCOS, RetinaNet). In this programming assignment, we will implement RetinaNet.

0. [3 pts Manually graded] ROIAlign using Bilinear Interpolation

   Recall that while projecting bounding boxes from an input image to a feature map via feature cropping, we use ROIAlign. Consider the 2D feature map given below, with corner points $(x,y)$, $(x+1,y)$, $(x,y+1)$ and $(x+1,y+1)$ as shown in the figure. The feature values at these corner points are $f(x,y) = f_{1}$, $f(x+1,y) = f_{2}$, $f(x,y+1) = f_{3}$ and $f(x+1,y+1) = f_{4}$. You need to resample the feature values using bilinear interpolation, as done in the ROIAlign operation. For a point $(p,q)$ such that $x \leq p \leq x+1$ and $y \leq q \leq y+1$

   0.1. Derive the formula for bilinear interpolation of the feature value $f(p,q)$ at the point $(p,q)$ based on the feature values at the corners.

   0.2. Find $\frac{\partial f(p,q)}{\partial p}$ and $\frac{\partial f(p,q)}{\partial f_1}$ in terms of $p,q,x,y$ and $f_1,...f_4$

1. [2 pts] Anchors

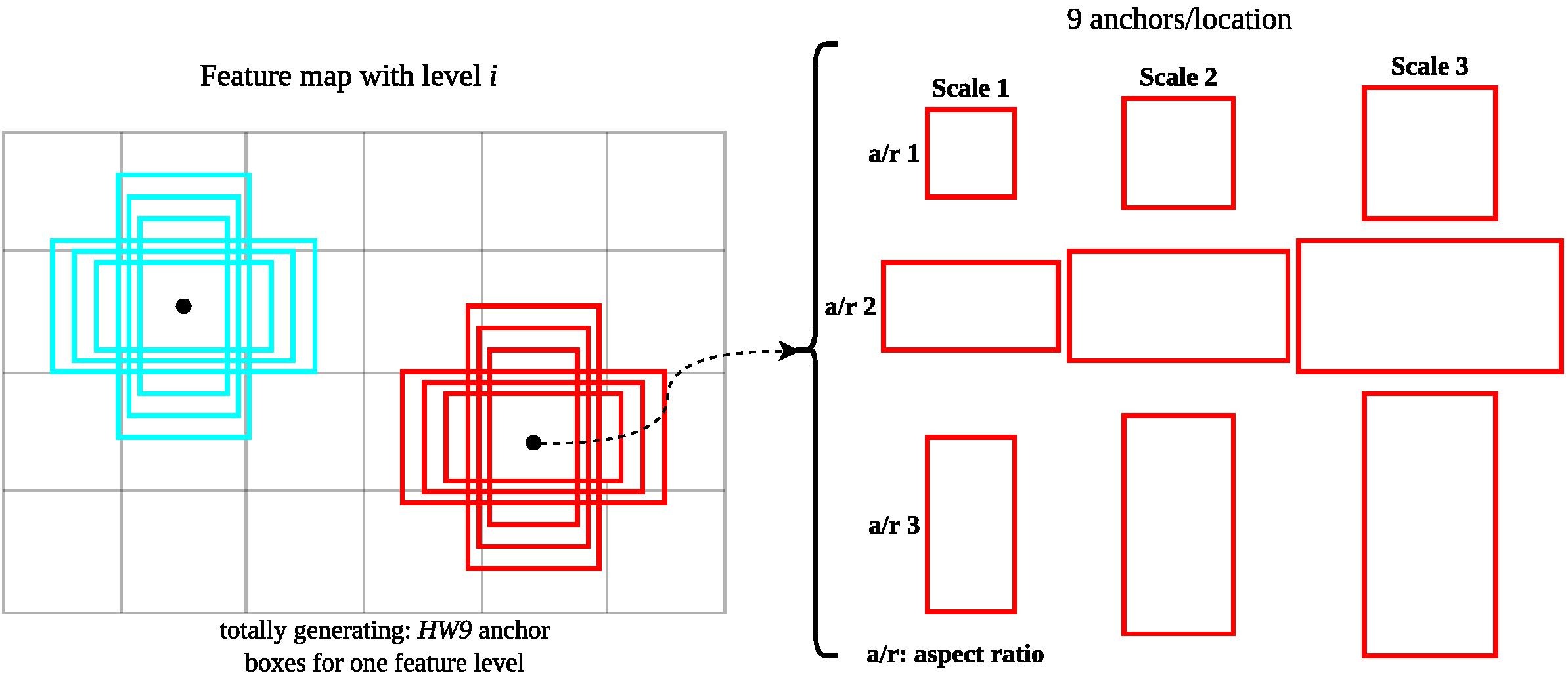

   We use translation-invariant anchor boxes. At each pyramid level, we use anchors at three aspect ratios: 1:2, 1:1, and 2:1, and we add anchors of sizes ${4\times 2^0, 4\times 2^{1/3}, 4\times 2^{2/3}}$ of the original set of 3 aspect ratio anchors. In total there are $A=9$ anchors per level. For a feature map at level $i$, these anchor's look as follows (image credit: A review on anchor assignment and sampling heuristics in deep learning-based object detection).



   Complete the __init__ and forward methods of Anchors class in network.py.

   1.1 [1 pts Autograded] You can test your implementation by running the following command. The test takes an image and a groundtruth bounding box as input, generate anchors and calculate the maximum iou between generated anchors and the groundtruth box. The max iou using your generated anchors should match the expected max iou.

   python -m unittest test_functions.TestClass.test_generate_anchors -v

   1.2 [1 pts Manually Graded] In addition, we will also visualize the anchors using the function visualize_anchor in vis_anchors.ipynb notebook. Submit the generated plot to Gradescope.

2. [2 pts Autograded] Assignment of GroundTruth Targets to Anchors Each anchor is assigned a length $K$ one-hot vector of classification targets, where $K$ is the number of object classes, and a 4-vector of box regression targets. Specifically, anchors are assigned to ground-truth object boxes using an intersection-over-union (IoU) threshold of 0.5 ; and to background if their IoU is in $[0,0.4)$. As each anchor is assigned to at most one object box, we set the corresponding entry in its length $K$ label vector to 1 and all other entries to 0 . If an anchor is unassigned, which may happen with overlap in $[0.4,0.5)$, it is ignored during training. Box regression targets are computed as the offset between each anchor and its assigned object box, or omitted if there is no assignment.

   Complete the compute_targets function in detection_utils.py. You can test your implementation by running:

   python -m unittest test_functions.TestClass.test_compute_targets -v

3. [2 pts Autograded] Relative Offset between Anchor and Groundtruth Box

   RetinaNet is a single, unified network composed of a backbone network and two task-specific subnetworks. The backbone is responsible for computing a convolutional feature map over an entire input image and is an off-the-self convolutional network. The first subnet performs convolutional object classification on the backbone's output; the second subnet performs convolutional bounding box regression.

   • Classification Subnet: The classification subnet predicts the probability of object presence at each spatial position for each of the $A$ anchors and $K$ object classes.
   • Box Regression Subnet: In parallel with the object classification subnet, another small FCN is attached to each pyramid level for the purpose of regressing the offset from each anchor box to a nearby ground-truth object, if one exists. The design of the box regression subnet is identical to the classification subnet except that it terminates in $4 A$ linear outputs per spatial location. For each of the $A$ anchors per spatial location, these 4 outputs predict the relative offset between the anchor and the groundtruth box. Note that RetinaNet uses a class-agnostic bounding box regressor.

   Complete the compute_bbox_targets method. The inputs are anchors and corresponding groundtruth boxes gt_bboxes. The outputs are the relative offset between the anchors and gt_bboxes. You can test your implementation by running

   python -m unittest test_functions.TestClass.test_compute_bbox_targets -v

4. [2 pts Autograded] Apply BBox Deltas The network will make predictions for these bounding box deltas. Given these predicted deltas, we will need to apply them to the anchors to decode the box being output by the network. Complete the apply_bbox_deltas method. The inputs are boxes and the deltas (offsets and scales). The outputs are the new boxes after applying the deltas. You can test your implementation by running

   python -m unittest test_functions.TestClass.test_apply_bbox_deltas -v

5. [2 pts Autograded] Non-Maximum Suppression As is, the detector will output many overlapping boxes around the object. We will implement non-maximum suppression to suppress the non-maximum scoring boxes. Complete the nms method. You can test your implementation by running:

   python -m unittest test_functions.TestClass.test_nms -v

6. [3pts Autograded, 2pts Manually Graded] Training the Detector

   Once you have passed the above tests, you can start training the RetinaNet with the following command. This command took around 2 hours to run on a A100 GPU on the campus cluster setup. The training loop also does validation once in a while and also saves train / val metrics into the output directory runs/run1.

   python demo.py --seed 2 --lr 1e-2 --batch_size 1 --output_dir runs/run1

   You can refer to sample.sbatch script for running on the campus cluster. Since you will be performing multiple training runs, it is advised to maintain proper directory structure of your output folder. We suggest you use the runs folder provided, and change the --output_dir flag in every run (E.g. runs/run1, runs/run2, ...). Make sure to make these changes in the sample.sbatch file's OUTPUT_DIR variable.

   Now comes the fun part. Note that this basic training using the above command actually doesn't train. What we will do next is try to get this detector to train and also improve its performance. Here are some suggestions that you can try:

   • Learning Rate Warmup. We found it useful to linearly ramp up the learning rate from 0 to the learning rate value over the first 2000 iterations. You can check out torch.optim.lr_scheduler.LinearLR and torch.optim.lr_scheduler.ChainedScheduler to implement it.

   • Gradient Clipping. We found it useful to clip gradients during training. We noticed that the classification loss wasn't decreasing on the training set and found gradient clipping to help with that.

   • Hyper-parameters Tuning. Note we are using SGD here so hyper-parameters are important.

   • Adding focal loss. The RetinaNet paper introduces the FocalLoss to deal with the large number of easy examples when working with a single-shot detector, and shows that it is quite effective. The current code only implements the usual cross-entropy loss. You can experiment with using the FocalLoss.

   • Data augmentation (scale, flips, color). The current code doesn't do any, but you can consider doing scale augmentation, flips, and color jittering. For flips and scale augmentation, make sure to adjust the box data accordingly.

   • Finetuning the ResNet. Current RetinaNet implementation keeps the ResNet fixed. You can consider finetuning it. However, be mindful of a) BatchNorm layers in small batch size settings, and b) memory consumption when finetuning the full ResNet (one option would be to not finetune all the layers but only conv2 through conv5).

   • Tweaking the architecture for Retina Net layers.

   • Designing better anchors.

   • Batch Size. The current code is set up to only use a batch size of 1. We found training with a bigger batch size (even 2) to be more stable. However, we also found that it had a miniscule effect on AP. When you increase batch size, pay attention to the learning rate. You may need to proportionally scale it up. There are two ways of implementing batching. The first option is to modify the data loaders, network definition and loss function definitions to work with a batch of images. The second option is to do gradient accumulation. This may require fewer code modifications.

   Use some of these (or other) ideas to improve the performance of the detector. You can do this development on the validation set (validation performance already being logged to tensorboard in the script). We will be providing leading curves for some runs as a reference in a few days as well.

   Once you are happy with the performance of your model on the validation set, compute predictions on the test set. The demo.py script saves the predictions on the test set at end of the script in a file called results_120000_test.json in the --output_dir directory, but you can also compute predictions on the test set using the following script:

   python predict.py --test_model_checkpoint 10000 --test_set test --model_dir runs/runs1

   6.1 Rename the appropriate test predictions file to results_test.json and upload to Gradescope to obtain its performance on the test set. It will be scored based on the AP it obtains. This part is autograded. Submissions with an AP of 0.31 or higher will receive full credit.

   6.2 For the manually graded part:

   • Include snapshots for the training and validation plots from tensorboard for your best run.
   • Document the hyperparameters and/or improvement techniques you applied in your report and discuss your findings. Include control experiments that measure the effectiveness of each aspect that lead to large improvements. For example, if you are trying to improve the performance of your model by adding more convolutional layers, you should include a control experiment that measures the performance of the model with and without the additional convolutional layers. It is insightful to do backward ablations: starting with your final model, remove each modification you made one at a time to measure its contribution to the final performance. Consider presenting your results in tabular form along with a discussion of the results.

Acknowledgments

This assignment borrows codethe GroupNorm code from FCOS and loss computation and pre-processing code from pytorch-retinanet.
